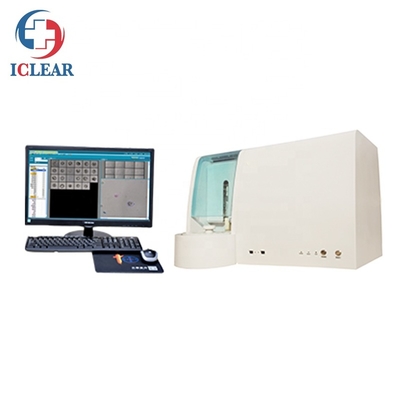

Medical Lab Equipment Full Urine Formed Element Automatic Urine Sediment Analyzer Machine CHL-U88

Lab Equipment Medical Full urine formed element Automatic Urine Sediment Analyzer Machine

CHL-U88

Scope of application: The product applies the flow counting method and is used by medical institutions for quantitative and qualitative analysis of urine samples.

Main Specifications:

Detection principle:
The analyzer host sends the sample to the flow counting cell on the microscope stage through the disc-type autosampler and the control fluid path. The sample in a certain field of view in the counting cell is enlarged and imaged on the CCD by the microscope, and then The image is sent to the computer, and the computer recognizes the image, classifies and counts the formed elements of urine, the calculation results, and prints out the analysis report.

Reportable parameters: number of red blood cells, number of white blood cells, number of epithelial cells, number of casts, number of crystals, number of sperm, number of mucus filaments.

Supporting consumables and reagents:
Cleaning fluid A: used for flushing, cleaning and maintenance of residual specimens in pipelines and flow counting cells;

Cleaning fluid B: used for further washing and maintenance of residual and deposited dirt in the pipeline and flow counting tank.
