Aperçu /Produits/La machine d'essai Elisa/AELAB Microplate Multi Mode Elisa Microplate Reader Filter AE-FlexA-200 Multifunctional Reader

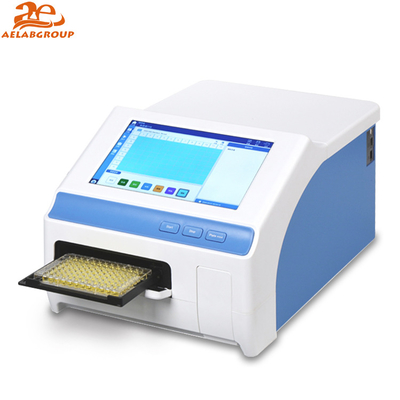

AELAB Microplate Multi Mode Elisa Microplate Reader Filter AE-FlexA-200 Multifunctional Reader

1.0 Pieces
MOQ
AELAB Microplate Multi Mode Elisa Microplate Reader Filter AE-FlexA-200 Multifunctional Reader
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Type: Biochemical Analysis System
Model Number: AE-FlexA-200
Instrument classification: Class I
Warranty: 1 Year
After-sale Service: Online technical support
Light source: ≤0.5μl
Wavelength range: 1x8 or 1x12 heads
Wavelength Accuracy: Flat, U, V, C bottom
Tepetition: 50~2000μl, increase by 50μl
Wavelength selection: Central two points multi points
Read-out range: 99 times
Half-bandwidth of filters: 3
Linearity @450nm: 0 - 2.5 Abs,±2% (96 well plates)
Accuracy @450nm: 1.0% + 0.005 Abs (0 - 2.0 Abs);2.0% [2.0 - 2.5 Abs)
Precision @450nm: CV < 0.5% accurate model;CV < 1.0% fast mode
Informations de base
Model Number: AE-FlexA-200
Conditions de paiement et expédition
Packaging Details: Packed into a strong carton box
Supply Ability: 50 Box/Boxes per Month
Description de produit
Product Description
Elisa Microplate Reader
FlexA-200 is a UV/Vis micro-plate spectrophotometer offering free wavelength selection, so being an ideal tool for virtually any photometric research application, such as DNA, RNA, protein analysis and more It offers exceptional usability through its intuitive, user-friendly internal software and comprehensive ReaderIt-II Software. FlexA-200 microplate reader has been designed to deliver high performance and high quality results with minimal user effort, It measures 96-and 384-well plates and plate shaking motion is linea
Integrated software or PC control software
Freely selectable filters
96 & 384 Well Plates
3 USB ports, for PC, printer and USB-disk
Features & Specification
Features:
1. 10 inch touch screen, and offers stand-alone operation, it is easy to use
Intuitive, user-friendly internal software on a 10 inch touch screen for quick measurements. Easy and logical assays setup for demanding assays with the powerful PC software (ReaderIt-II), the PC software can offer to analysis, review, validate data. It is easy access to data via USB interface and WIFI
2. Freely selectable wavelengths from 200 - 1000 nm for the demands of various assays
Wavelength selection in FlexA-200 is done by using an advanced monochromator system. Any wavelength between 200 to 1000nm can be selected at any time. Using the spectral scanning feature, the whole spectrum of a sample be scannedin 1nm increments to allow identification of the optimal measurement wavelength for a new assay.
3.Both microplate reading for any throughput requirements
It measures 96-and 384-well plates
4.Flexibility and performance for various photometric applications
FlexA-200 microplate reader supports endpoint, kinetic and spectral scanning assays. It reads 96- and 384-well microplates with and without lids.A broad wavelength range with the UV area, pathlength correction as well as fast spectral scanning makes it an ideal tool for any photometric research application, including DNA, RNA and protein analysis
Technical Specifications:
Model
AE-FlexA-200
Display
10 inch touch screen
Light source
Quartz-halogen lamp
Wavelength range
200 - 1000 nm with 1 nm steps
Wavelength Accuracy
±2 nm
Tepetition
±0.2 nm
Wavelength selection
Monochromator
Read-out range
0 - 4.0 OD
bottle
3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
Half-bandwidth of filters
<2.5 nm
Detector
two silicon photoelectric detector, one for measurement, another for reference
Linearity @450nm
0 - 2.5 Abs，±2% (96 well plates)
Accuracy @450nm
1.0% + 0.005 Abs (0 - 2.0 Abs)；2.0% [2.0 - 2.5 Abs)
Precision @450nm
CV < 0.5% accurate model；CV < 1.0% fast mode
Test speed
10 seconds with 96-well plate (fast mode); 30 seconds with 96-well plate (accurate model)
Plate shaking
Linear; three options for speed
Test speed
15 seconds with 96-well plate (single wavelength); 30 seconds with 96-well plate (double wavelength)
Incubator
From ambient + 5℃to 45℃
UI
Integrated software or PC control software
Analysis software
ReaderIt-II
User interface
Touch screen, android system, 10 inch touch screen, external keyboard mouse
Storage
16G memory, more than 10,000 test records can be stored
Ports
3 USB ports, for PC, printer and USB-disk
Automated systems
Temporarily unable compatible with automated systems
Power supply
DC24V 6.5A
Dimensions(W×D×H)
300×500×290mm
Weight
15kg
