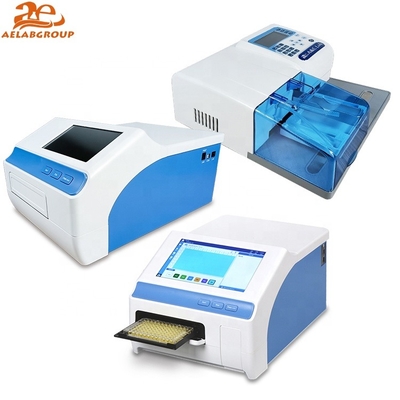

High Quality Reader With Competitive Price AE-APW-200 From AELAB Elisa Microplate Washer And Elisa Microplate

1.0 Pieces
MOQ
High Quality Reader With Competitive Price AE-APW-200 From AELAB Elisa Microplate Washer And Elisa Microplate
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Type: Biochemical Analysis System
Model Number: AE-APW-200,AE-AMR-100,AE-FlexA-200
Instrument classification: Class I
Warranty: 1 Year
After-sale Service: Online technical support
Residual liquid: ≤0.5μl
Washing heads: 1x8 or 1x12 heads
Plate types: Flat, U, V, C bottom
Washing volume: 50~2000μl, increase by 50μl
Washing method: Central two points multi points
Washing times: 99 times
Washing channels: 3
bottle: 3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
Soaking and Shaking time: 19'59"
Number of wash protocols: up to 100
Informations de base
Model Number: AE-APW-200,AE-AMR-100,AE-FlexA-200
Conditions de paiement et expédition
Packaging Details: Packed into a strong carton box
Supply Ability: 50 Box/Boxes per Month
Description de produit
Product Description
Elisa Microplate Reader
AE-AMR-100
AE-FlexA200
AMR-100 Microplate Reader is a 8-channel absorbance microplate reader that provides not only accurate, reproducible and fast measurements, but also offer innovative design with its easy-to-use control and data analysis software. It is ideal for a variety of ELISA applications in the biology laboratory
Software
Standard absorbance filters
96 Plates(AE-FlexA200 384&96 Plates)
Interface
Elisa Microplate Washer
4.3 inch LCD
Safety
Liquid Bottle
Plate
Liquid position sensor
Interface
Features & Specification
Technical Specifications:
Elisa Microplate Reader
Model
AE-AMR-100
Display
7 inch touch screen (800x480 dots)
Light source
Quartz-halogen lamp 6V/10W
Wavelength
340-750nm
Optical filter
Equipped with filters: 405,450,492,630nm
Half-bandwidth of filters
3~9nm
Read-out range
0~4.000Abs
Linearity (405nm)
0~2.000Abs ≤±1%, 2~4.000Abs ≤±2%
Resolution
0.001Abs
Accuracy (405nm)
±1% (0-3Abs), ±2% (3-4Abs)
Precision(405nm)
CV≤0.2% (0-3Abs), CV≤1.0% (3-4Abs)
Test speed
<6s for 96 wells plate
Incubator
No
Shaking
3 modes shaking: slow, medium and fast
User interface
Integrated software or PC control software
Operation
Touch screen, 3 pcs external keys
Storage
200 programs and 100,000 test records
Ports
3 USB ports, for PC, printer and USB-disk
Dimensions(W x D x H), weight
440 x 295 x 225 mm, 10kg
Model
AE-FlexA-200
Display
10 inch touch screen
Light source
Quartz-halogen lamp
Wavelength range
200 - 1000 nm with 1 nm steps
Wavelength Accuracy
±2 nm
Tepetition
±0.2 nm
Wavelength selection
Monochromator
Read-out range
0 - 4.0 OD
bottle
3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
Half-bandwidth of filters
<2.5 nm
Detector
two silicon photoelectric detector, one for measurement, another for reference
Linearity @450nm
0 - 2.5 Abs，±2% (96 well plates)
Accuracy @450nm
1.0% + 0.005 Abs (0 - 2.0 Abs)；2.0% [2.0 - 2.5 Abs)
Precision @450nm
CV < 0.5% accurate model；CV < 1.0% fast mode
Test speed
10 seconds with 96-well plate (fast mode); 30 seconds with 96-well plate (accurate model)
Plate shaking
Linear; three options for speed
Test speed
15 seconds with 96-well plate (single wavelength); 30 seconds with 96-well plate (double wavelength)
Incubator
From ambient + 5℃to 45℃
UI
Integrated software or PC control software
Analysis software
ReaderIt-II
User interface
Touch screen, android system, 10 inch touch screen, external keyboard mouse
Storage
16G memory, more than 10,000 test records can be stored
Ports
3 USB ports, for PC, printer and USB-disk
Automated systems
Temporarily unable compatible with automated systems
Power supply
DC24V 6.5A
Dimensions(W×D×H)
300×500×290mm
Weight
15kg
Elisa Microplate Washer
Model
AE-APW-200
Residual liquid
≤0.5μl
Washing heads
1×8 or 1×12 heads
Plate types
Flat, U, V, C bottom
Washing volume
50~2000μl, increase by 50μl
Washing method
Central two points multi points
Washing times
99 times
Washing channels
3
bottle
3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
Dispense accuracy
CV≤2.0% at 300μl (CV≤1.5% for 96 wells)
Soaking and Shaking time
19’59”
Number of wash protocols
up to 100
Data connection
USB
Dimensions(W x D x H)
345 x 460 x 200 mm
Weight
11.5kg
Power supply
AC100/240V, 50/60Hz
Recommend Products
Packing & Shipping
Company Information
AELAB GUANGZHOU CO.,LTD is a company that has many of manufacturing and selling wide range of science & laboratory instruments. The main product include liquid handing, nucleic acid and protein analysis instruments, general instruments, cleaning machines. Over 15 years international sales experience and already provide service over 100 countries. We are able to provide installation,debugging, training service onsite. For general machines we are providing online training service or telephone call training service to distributors. The machine basic information and brochure customers can download from our website directly.
Please do not hesitate, AELAB products are worth a try! Welcome to join us!
FAQ
Q: How about the warranty for your products?
A: All of our products have 1 - 2 year warranty. During the guarantee period, if there are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country.

Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.

Q: Can you offer the technical support, online or site training or other
A: We will offer technical support like operating manual, operating videos to support or provided training material of the detailed products you are interested in. If you have chance to come to Guangzhou, welcome to our office, we have samples here, and we can show you how to operate them.
